Eachine

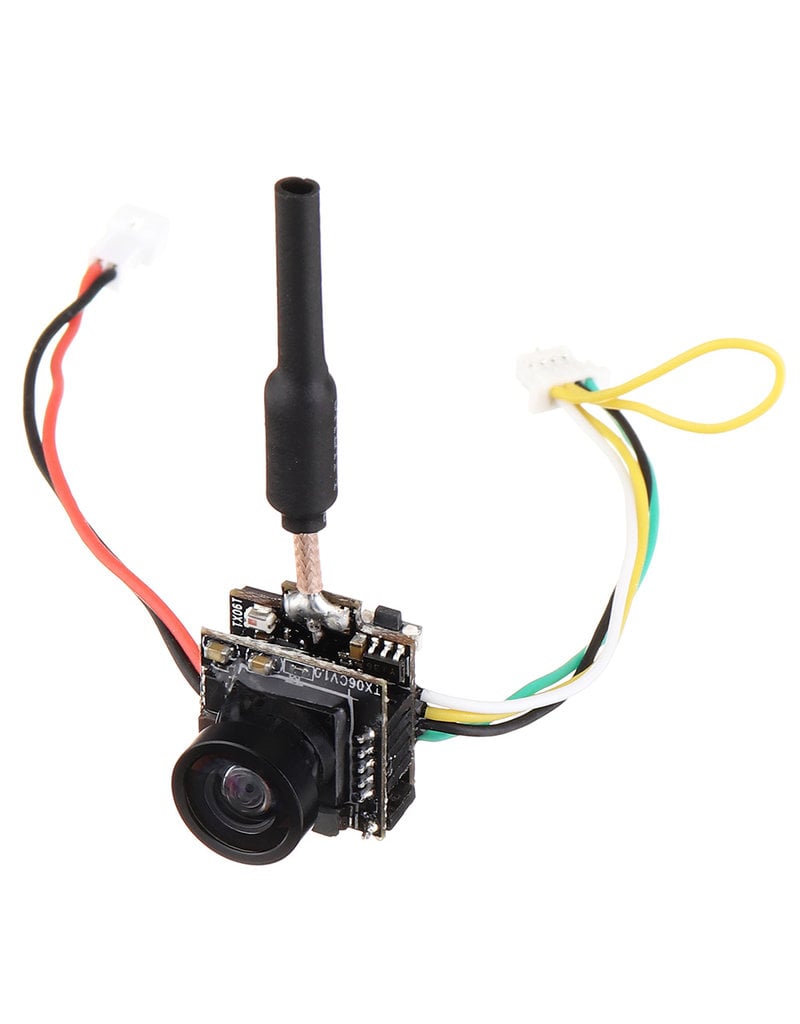

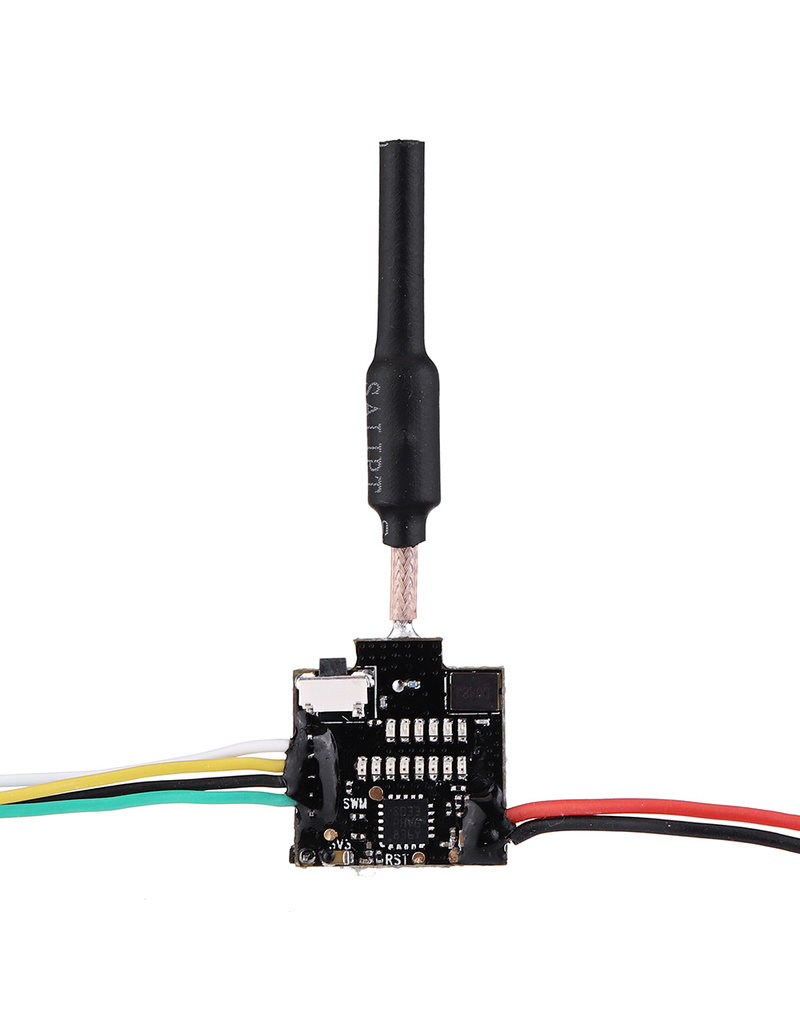

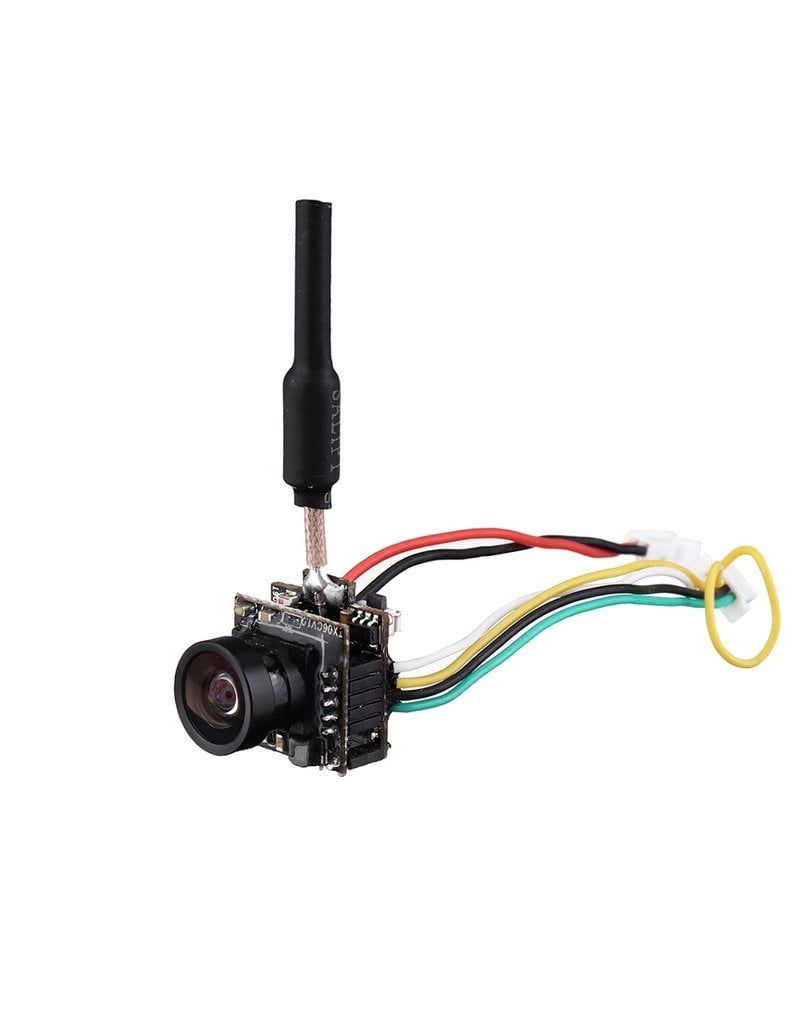

Eachine TX06 Micro Camera + VTX

€22,95
Op voorraad
Voor 15.00 besteld, vandaag verstuurd

Productomschrijving

Super kleine en lichte camera om gemakkelijk op een RC toestel te plaatsen. Weegt slechts 3 gram





Specificaties fabrikant

Feature

OSD configuration using FC Uart
Super small and lightweight
700TVL high picture quality,Low Power Consumption.
48CH channel with race band
Power by 1S lipo battery
Plug and play,designed for DIY
Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD


Specification

Transmitting power: 25mW
Frequency: 5.8G 48CH
Input voltage:3.3-5.5V (recommanded battery click here)
Current consumption:280mA(typical)
Camera resolution: 700TVL
Video Format:  NTSC
Field of view : 120°viewing angle
Antenna dimensions:  35mm*4.2mm diameter
Antenna: Brass dipole Antenna
Frequency:5.8GHz 6 bands 48 channels,
with Race band:5474-5945MHZ
Size:  14*13.8mm(L*W)
Weight:2.8g


Package Included
1 x Eachine TX06 700TVL FOV 120 Degree 5.8Ghz 48CH Mini FPV Camera AIO Transmitter For RC Drone
1 x Molex 1.25mm to JST-DS 2.0mm 2P Power Cable
