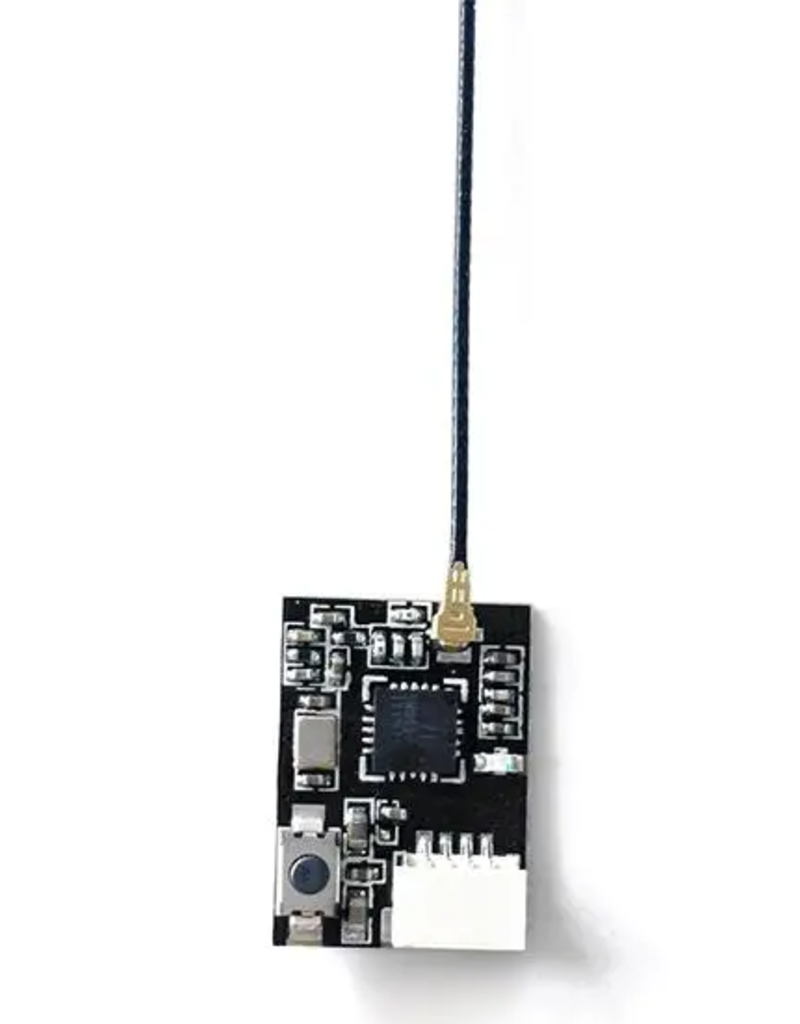

FS-RX2A Pro V1 2.4G - AFHDS2A ontvanger

Op voorraad
Voor 15.00 besteld, vandaag verstuurd


Zeer compacte receiver weegt slechts 9 gram. perfect voor micro drones, park vliegers of ultra lichte racers. Geschikt voor ibus transmitters als i6, i6S, i8, Nirvana, Turnigy Evolution en veel meer!


Specificaties fabrikant


FS-RX2A Pro V1 receiver is upgraded with longer control distance and more power than FS-RX2A Pro receiver.

Item name: FS-RX2A Pro V1 receiver
Channel: 10(IBUS), 8(PPM)
RF Range: 2.408-2.475GHZ
Number of bands: 135
RX Sensitivity: -92dBm
2.4GHz protocol: AFHDS 2A
Signal output: IBUS, PPM
Antenne length: 33mm
Power input: 5.0-20V
Control distance: 500m+
Current: 30MA
Size: 12*15mm
Weight: 0.9g
Compitable Transmitter: All AFHDS 2A Transmitter, for example FS-I6,FS-I6X,FS-I6S,FS-TM8,FS-TM10,FS-I10.

Note: Failsafe only work on IBUS, not in PPM.

Binding Procedure:
1. Press and hold the Binding button, and supply power to the receiver, blue LED blinks fast means entering the binding mode.
2. Make the transmitter enter BIND mode.
3. The LED indicator become slowly blink means the binding is succeed.
4. Make the transmitter quit the BIND mode, the receiver LED indicator stay on means receiving signal.

Package included:
1x receiver
1x 4P*1.0MM plug wire
